M41A Electronics install

Updated19/12/2024

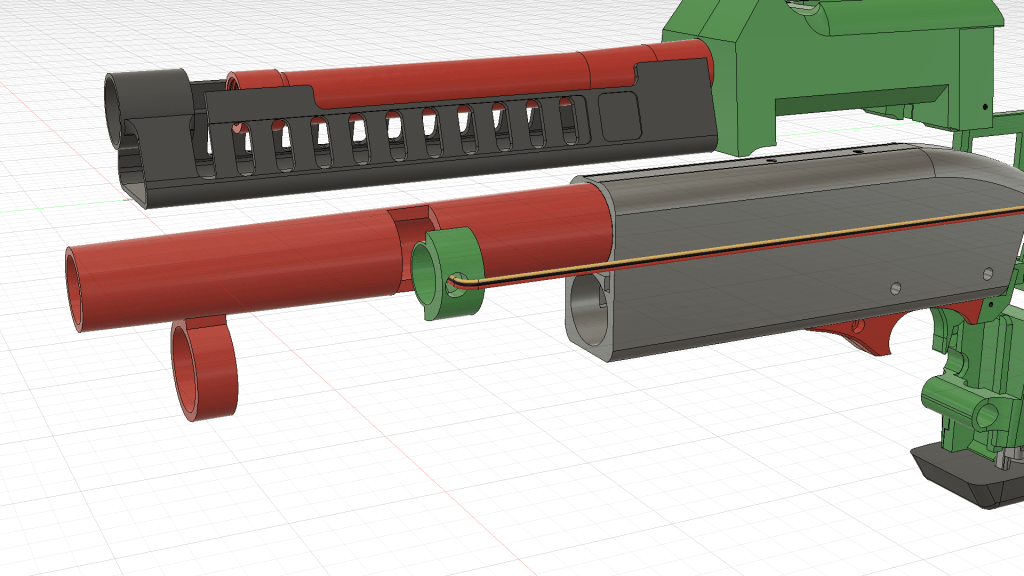

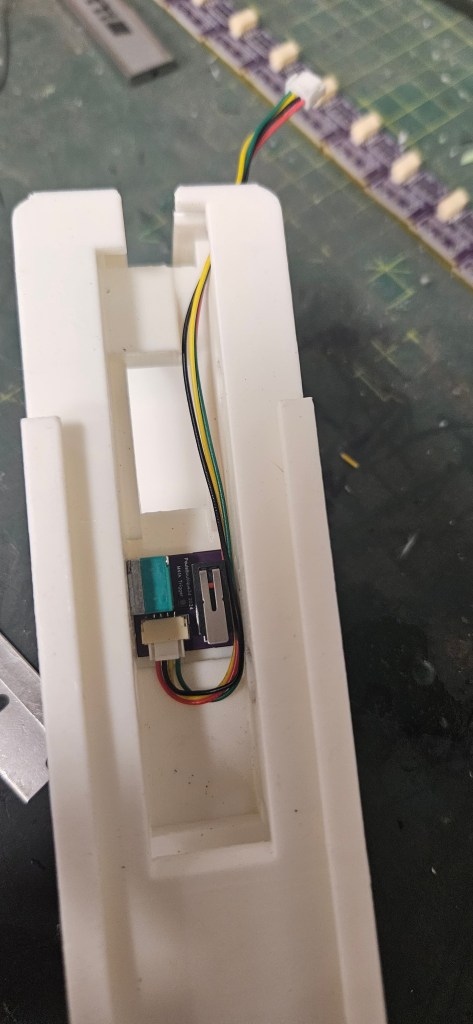

Start by slotting the 2LED into the remington barrel.

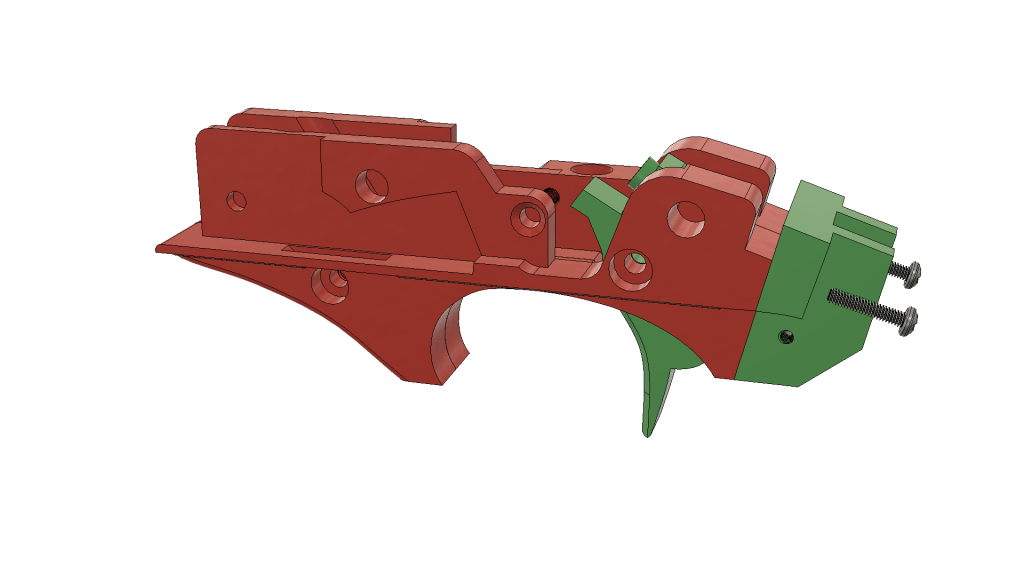

Swap out the remington trigger with the new one and screw on the microswitch with the supplied M2 scews

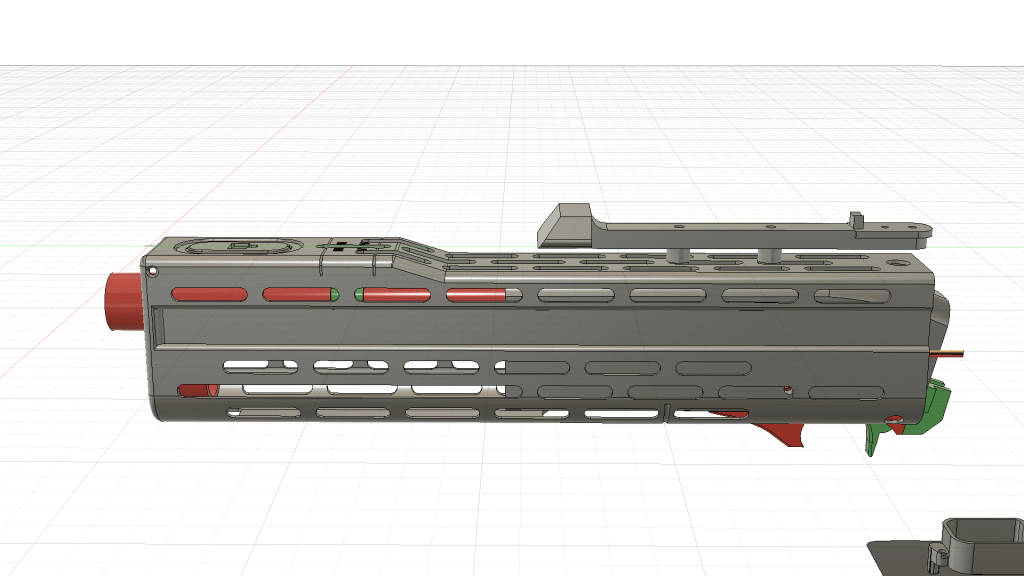

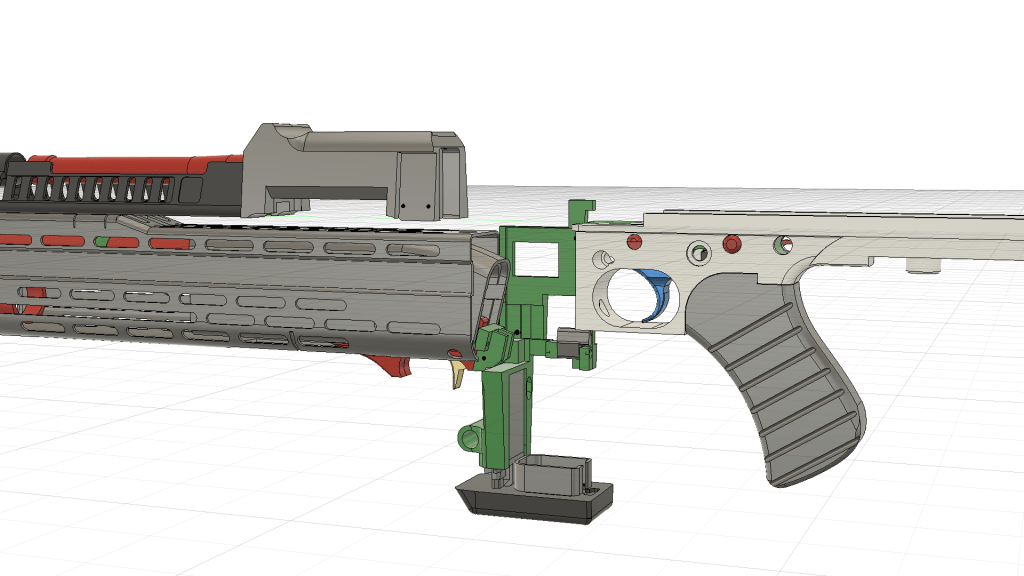

Assemble your remington as normal and insert into the SPAS cage

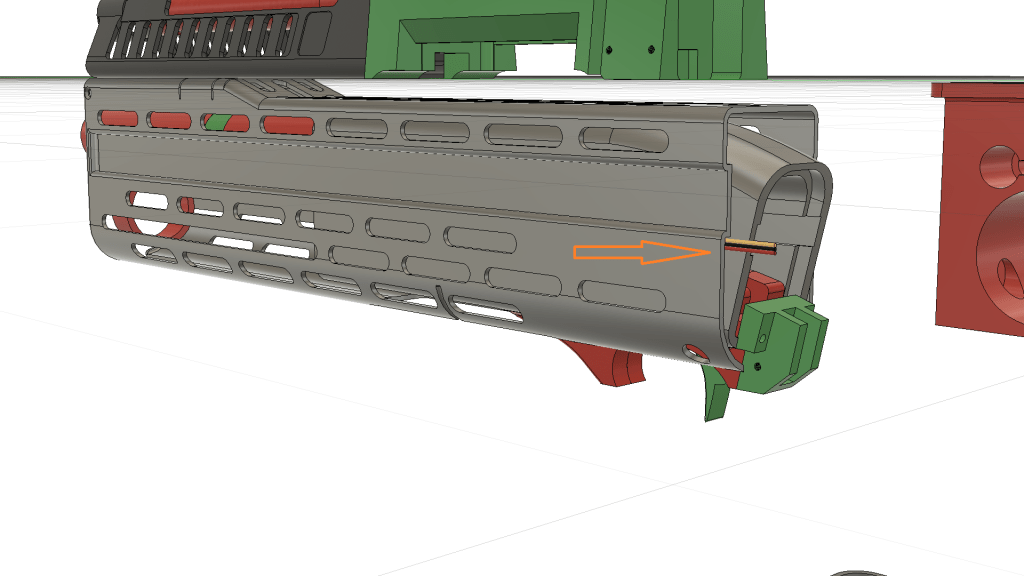

try and keep the wire in the lower recess of the spas cage

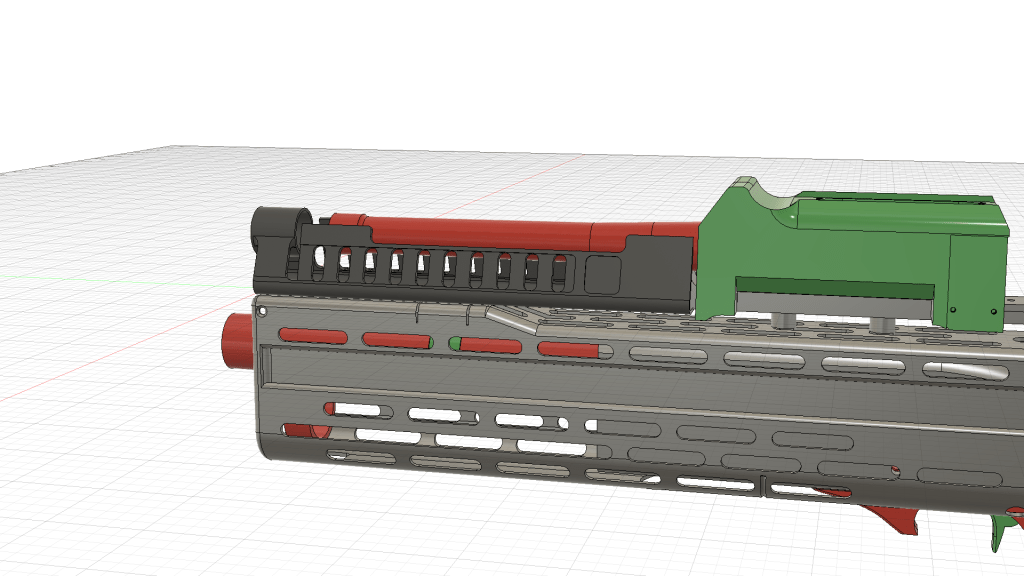

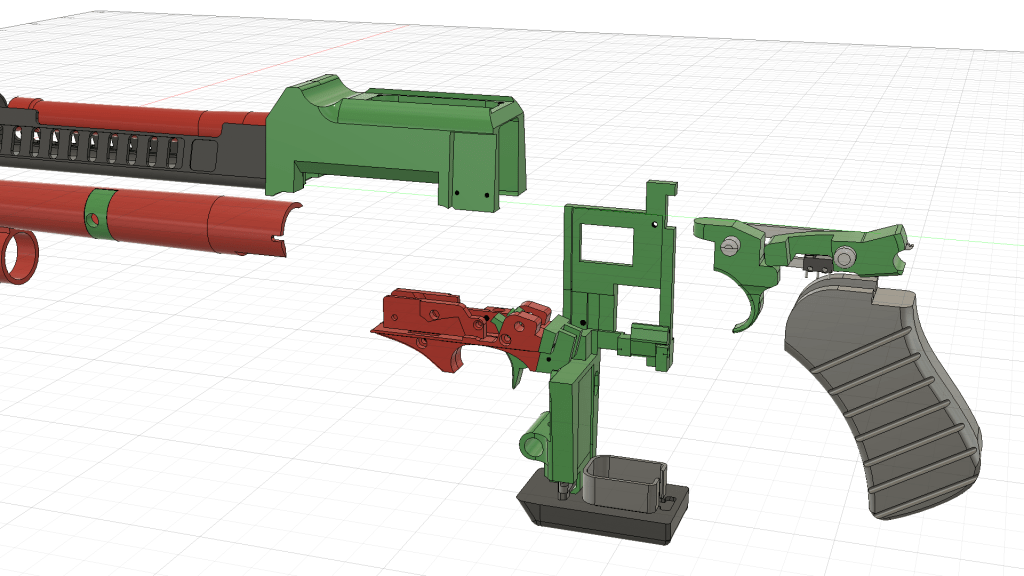

Screw the vent holder on securing the remington and add in the short barrel threading the 1LED through it and slot the speaker box on top. screw your front barrel vent on also

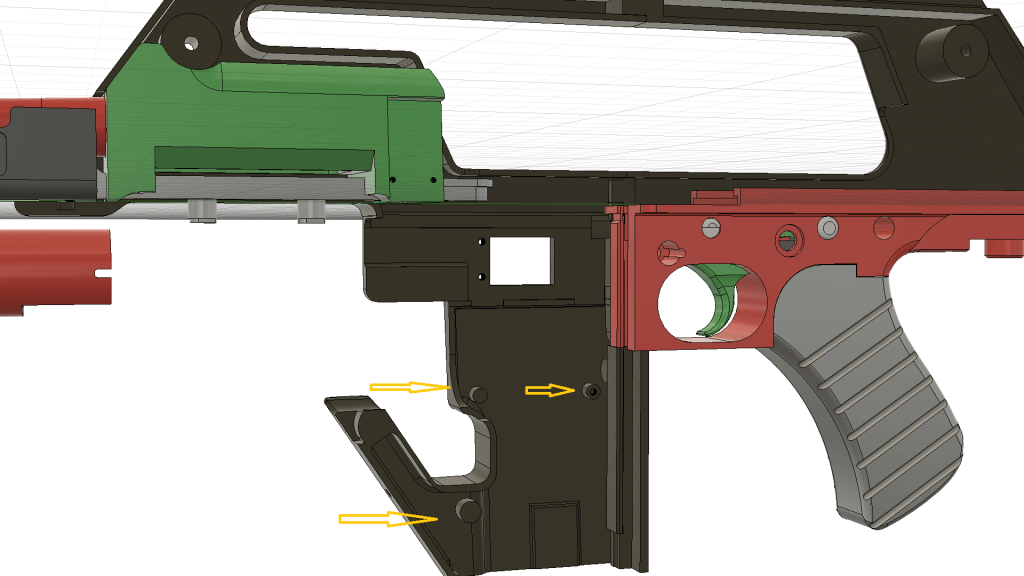

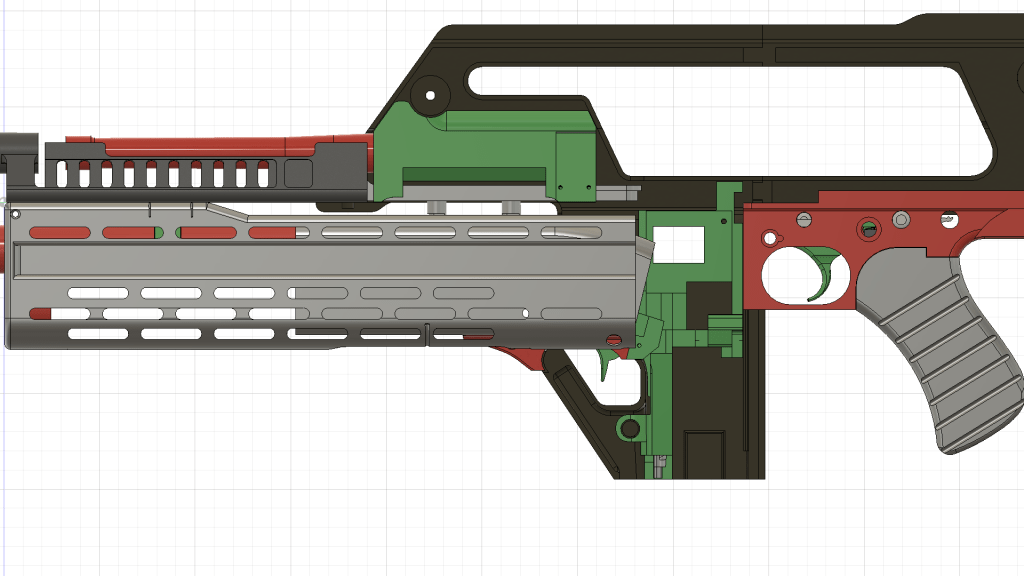

Place the counter frame in the right shroud, it lines up with the 3 locating lugs on the shroud.

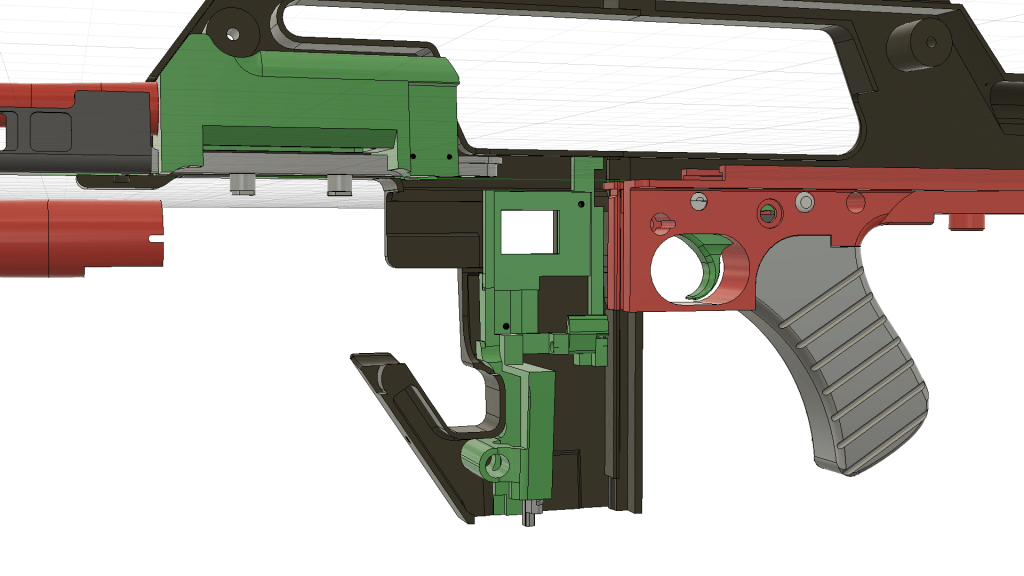

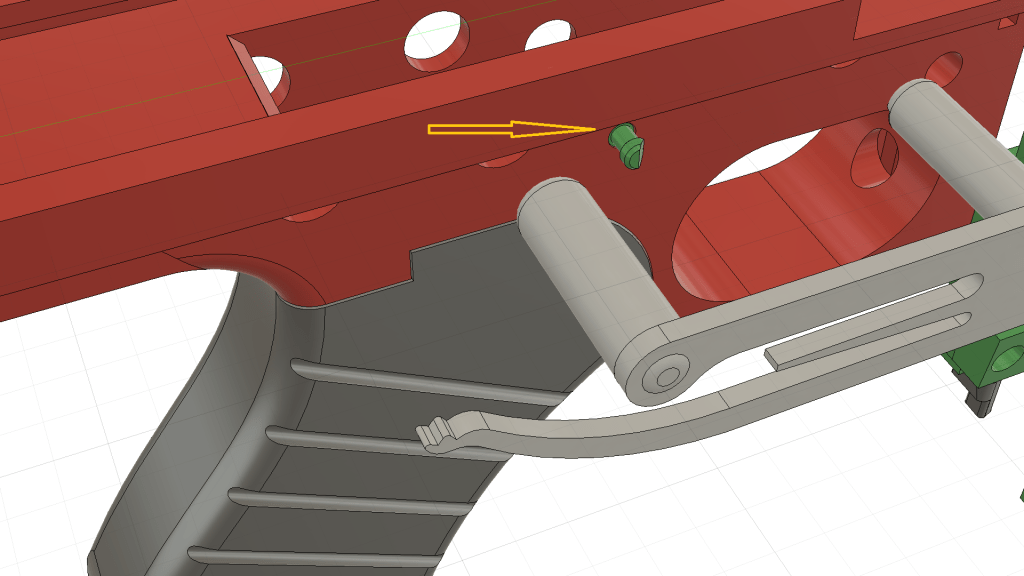

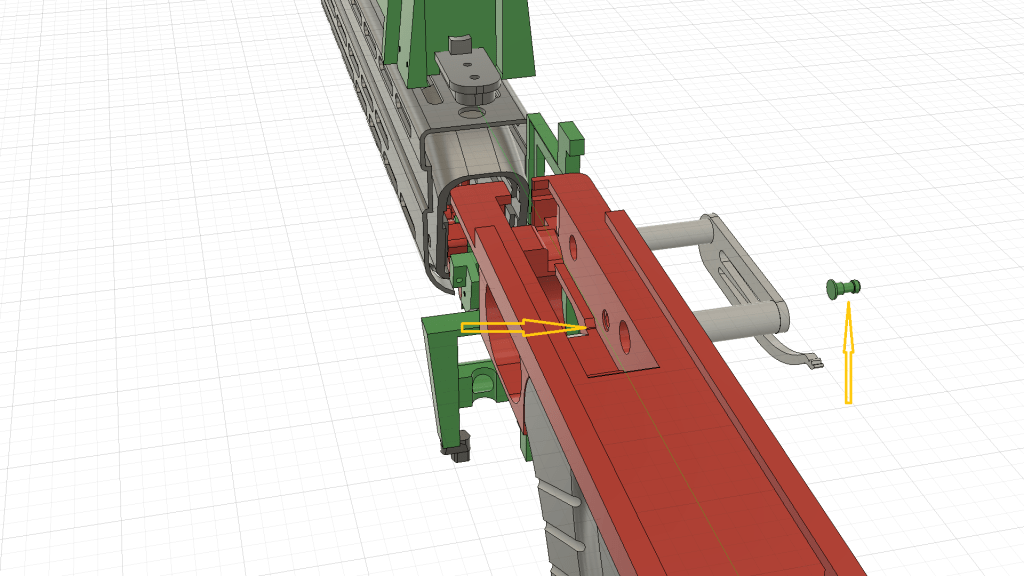

Insert the fake selector tip into the thompson frame

Add in the thompson trigger pcb and secure it with the nut on the potentiometer. Insert the pcb in upside down first, give it a little push down and then rotate it to the correct direction.

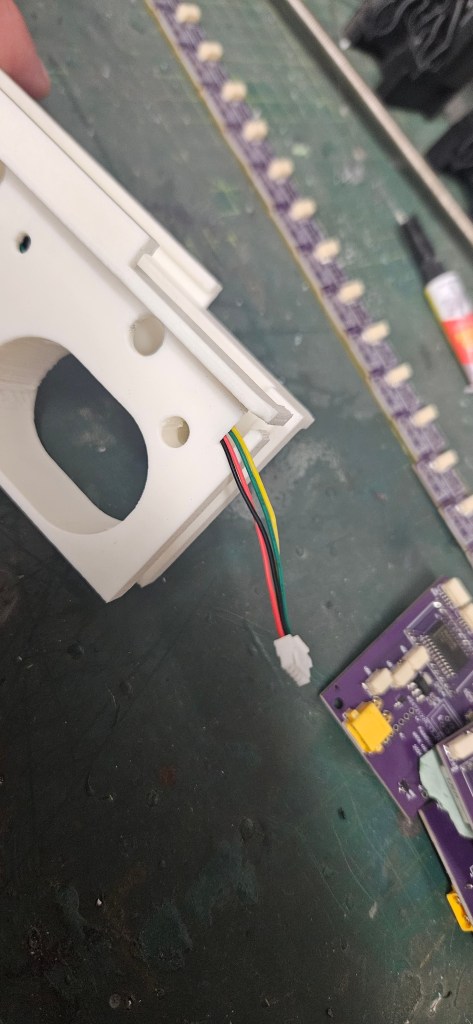

Attach the loom and route it around the side of the microswitch and into the channel at the front

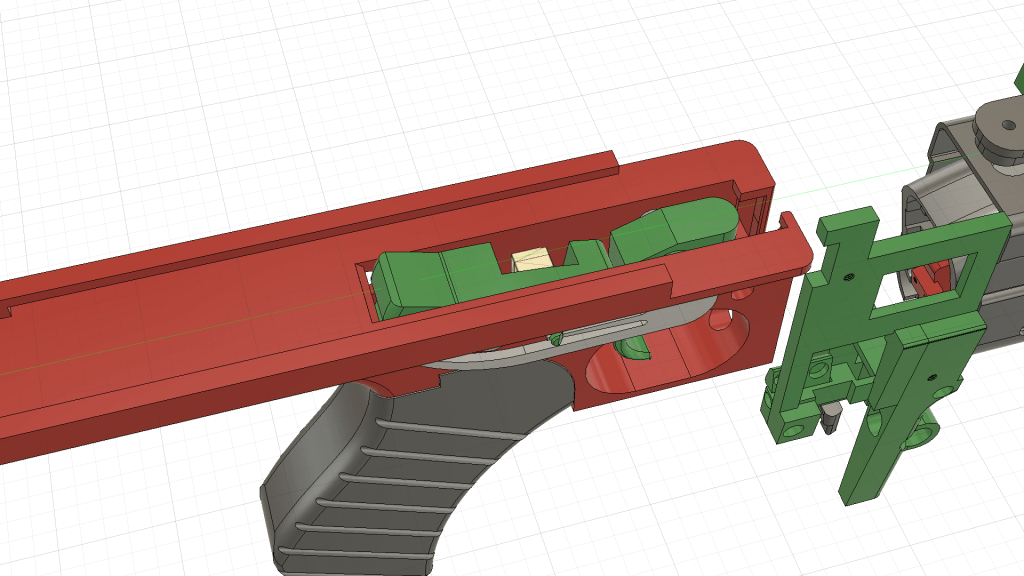

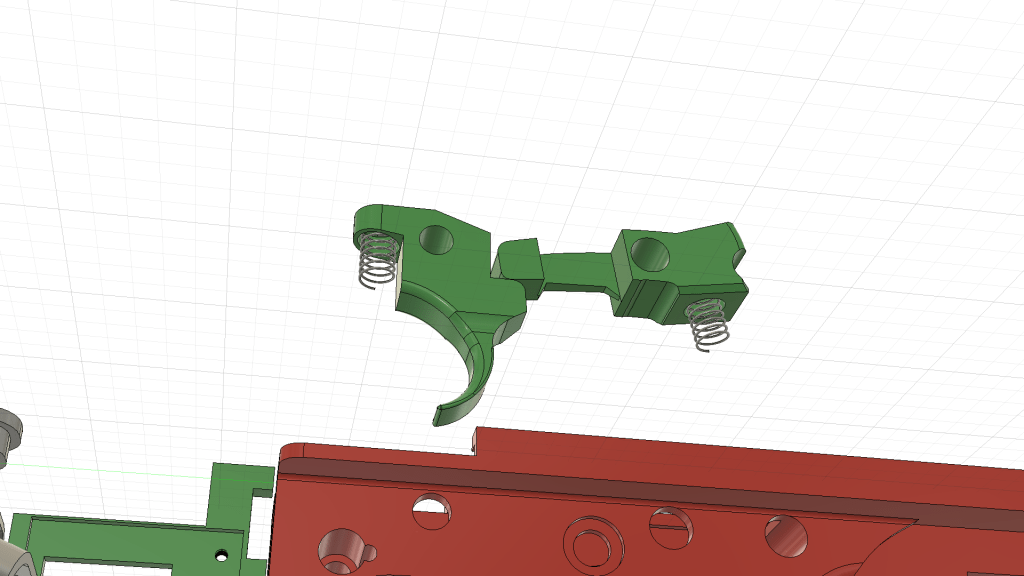

Add the springs into the trigger and sear and secure with pivot plate
